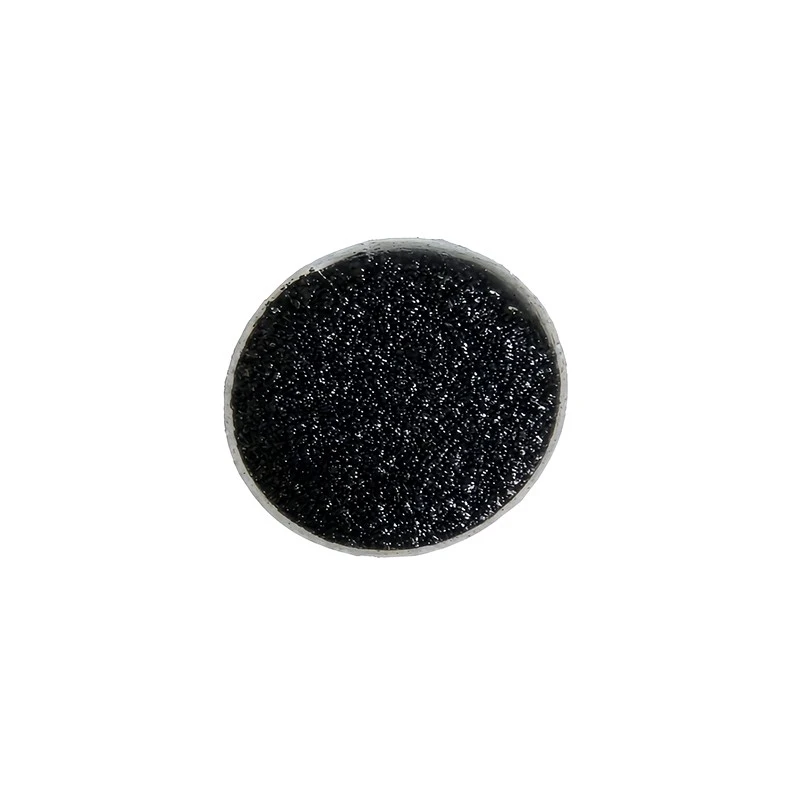

Reinforced PA6 for Load-Bearing Molded Parts
Reinforced Nylon Molding Compound is an enhanced engineering plastic based on PA6. It is designed for parts that need higher mechanical strength, good heat resistance, controlled dimensions, and a good injection-molded appearance.
The material can be used in automotive components, power tools, and mechanical parts. Typical applications include components related to plastic fuel tanks, air-conditioning outlets, and other injection-molded products that must withstand assembly loads or long-term mechanical stress.
Unlike materials developed mainly for flexibility or impact absorption, reinforced PA6 focuses more strongly on structural support, rigidity, and resistance to deformation.
Multiple Performance Ranges for Different Part Designs
The typical reinforced grades listed in the product information have a density of 1.35–1.36 g/cm³ and a molding shrinkage range of 0.25%–0.50%.
Depending on the selected grade, tensile strength at break ranges from 130 to 190 MPa. Flexural strength ranges from 162 to 220 MPa, while flexural modulus is 6400–8900 MPa.
The notched Izod impact strength is 14–16 kJ/m². Under a load of 1.82 MPa, the heat deflection temperature ranges from 190°C to 215°C.
These different performance ranges allow buyers to select Reinforced Nylon Molding Compound according to the strength, rigidity, dimensional control, and thermal requirements of the final molded component instead of using one grade for every application.
Application-Based Grade Selection
Different products place different demands on reinforced PA6.
Automotive components may place greater importance on heat resistance, mechanical strength, and dimensional consistency. Power-tool parts often need a balance between rigidity, impact resistance, and molded appearance. Mechanical components may focus more heavily on load-bearing capacity and long-term structural stability.
Final performance is also influenced by part wall thickness, mold structure, material grade, and injection molding conditions. Buyers should therefore consider the actual load direction, operating temperature, appearance requirements, and assembly dimensions of the finished part.
Sample molding can be used to observe material flow, shrinkage, and finished-part dimensions before a grade is confirmed for batch production.
From Material Formulation to Injection Molding Support
Diyou New Material has a complete production chain covering formulation design, twin-screw extrusion modification, injection molding, and performance testing.
The technical team can support material selection according to reinforcement requirements, mechanical properties, heat resistance, and molding results. Injection molding conditions can also be optimized according to the customer's existing mold and product structure.
Raw material receiving, production processes, performance inspection, and finished-product management are carried out under an ISO 9001 quality management system.
For more efficient material matching, customers purchasing Reinforced Nylon Molding Compound can provide information such as part application, structural dimensions, target strength, and processing equipment before sample testing or batch ordering.
Product Specifications
|
Parameter |
Specification |
|
Material Type |
Reinforced PA6 |
|
Typical Density |
1.35–1.36 g/cm³ |
|
Molding Shrinkage |
0.25%–0.50% |
|
Tensile Strength at Break |
130–190 MPa |
|
Heat Deflection Temperature at 1.82 MPa |
190–215°C |
