Antistatic PA6 for Electrical and Structural Parts

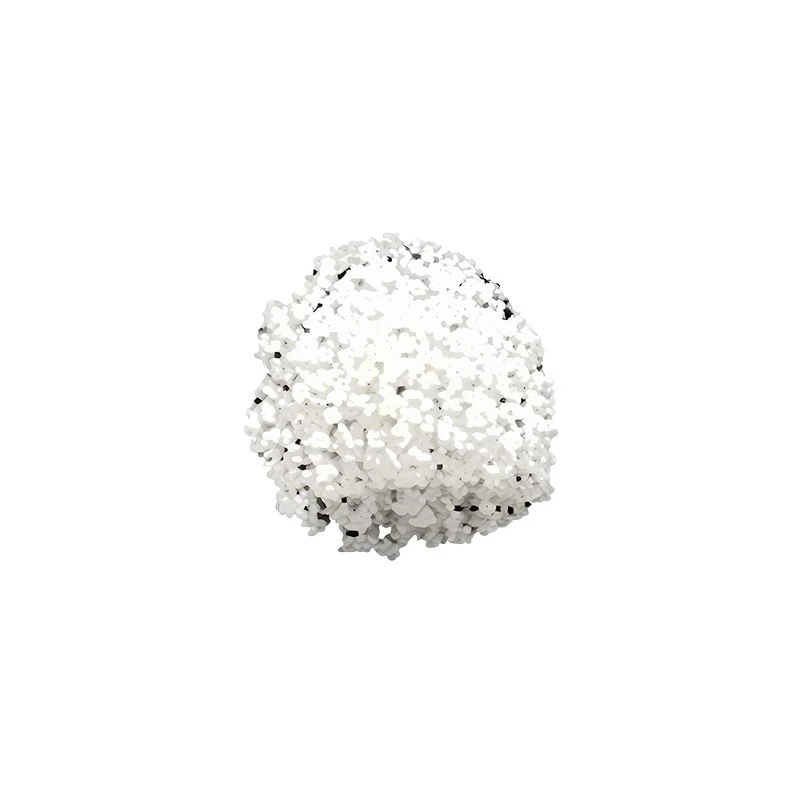

Antistatic Flame Retardant Nylon Compound is a functional modified engineering plastic based on reinforced PA6. It is designed for injection-molded components that require static control, flame resistance, and mechanical support in the same material.
The material reaches a UL-94 V-0 flame-retardant rating and provides antistatic performance while retaining the rigidity and load-bearing characteristics of reinforced nylon.
Applications listed in the product information include automotive, electronics, and electrical components. It can be used for conductive insulating sheets, mining nylon ground rollers, and other structural parts where reducing static accumulation is an important material requirement.
Compared with ordinary reinforced PA6, this grade adds a defined surface resistance range while continuing to support structural injection molding applications.
Surface Resistance and Mechanical Properties
The typical density of this antistatic flame-retardant reinforced PA6 is 1.31 g/cm³. Its molding shrinkage is 0.30%–0.50%, which should be considered together with mold dimensions and finished-part tolerances.
The tensile strength at break is 95 MPa, while flexural strength is 120 MPa. A flexural modulus of 4300 MPa provides rigidity for molded structural parts.
Notched Izod impact strength is 10 kJ/m². Under a load of 1.82 MPa, the heat deflection temperature is 185°C.
The surface resistance is 10⁶–10¹⁰Ω. These properties allow Antistatic Flame Retardant Nylon Compound to combine static control with V-0 flame resistance and useful mechanical performance.
Define the Required Resistance Before Purchasing
Material selection should start with the actual electrical requirement of the finished component.
For electronic and electrical structures, buyers should evaluate surface resistance, flame-retardant rating, dimensional stability, and part thickness together. Automotive applications may also require consideration of temperature variation, assembly load, and wall thickness.
For mining nylon ground rollers or similar parts, friction, mechanical load, and the actual operating environment should be included in the material discussion.
Before batch purchasing, customers can provide part drawings, the target resistance range, flame-retardant requirements, injection molding equipment information, and current material data. This helps avoid selecting a material only because it is described as "antistatic" while overlooking mechanical performance or shrinkage differences.
Antistatic Formulation and Quality Management
Changshu Diyou New Material Technology Co., Ltd. has capabilities in modified plastic formulation design, twin-screw extrusion, injection molding verification, and performance testing.
For antistatic flame-retardant nylon, the technical team can support the balance between the antistatic system, flame resistance, mechanical strength, and molding conditions.
Production and quality processes are managed under an ISO 9001 quality management system. Raw materials, production processes, performance inspection, and finished-product release follow standardized management procedures.
This provides a traceable quality-control basis for batch purchasing where Antistatic Flame Retardant Nylon Compound needs consistent surface resistance, flame-retardant performance, and mechanical properties.
Product Specifications
|
Parameter |
Specification |
|
Material Type |
Antistatic Flame Retardant Reinforced PA6 |
|
Flame Retardant Rating |
UL-94 V-0 |
|
Surface Resistance |
10⁶–10¹⁰Ω |
|
Tensile Strength at Break |
95 MPa |
|
Heat Deflection Temperature at 1.82 MPa |
185°C |
